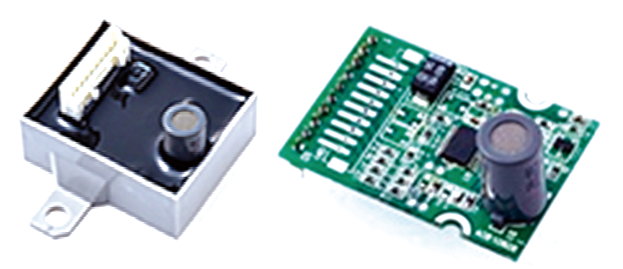

SB-42A-11 Mounted
FIS 3000 series gas sensor modules include FIS SB type gas sensor and the application circuit. The embedded circuit contains sensor driving and output signal processing functions. Since the module is factory calibrated, users do not need expensive and complicated calibration equipment and procedure. The finished product can be designed easily. Modules with a case are also available.
FEATURE
Using small and highly gas sensitive "SB" type sensor.
Factory calibrated for target gas
Alarm output
Compensated for temperature and humidity change
Output digital concentration for quality control
Low power consumption
Malfunction output
Small and light
Supply voltage: DC5±0.25V
Adjusted alarm concentration: 1st alarm: 3000ppm;
2nd alarm: 6000ppm of hydrogen
Concentration output: Available
Water-proof housing: Included

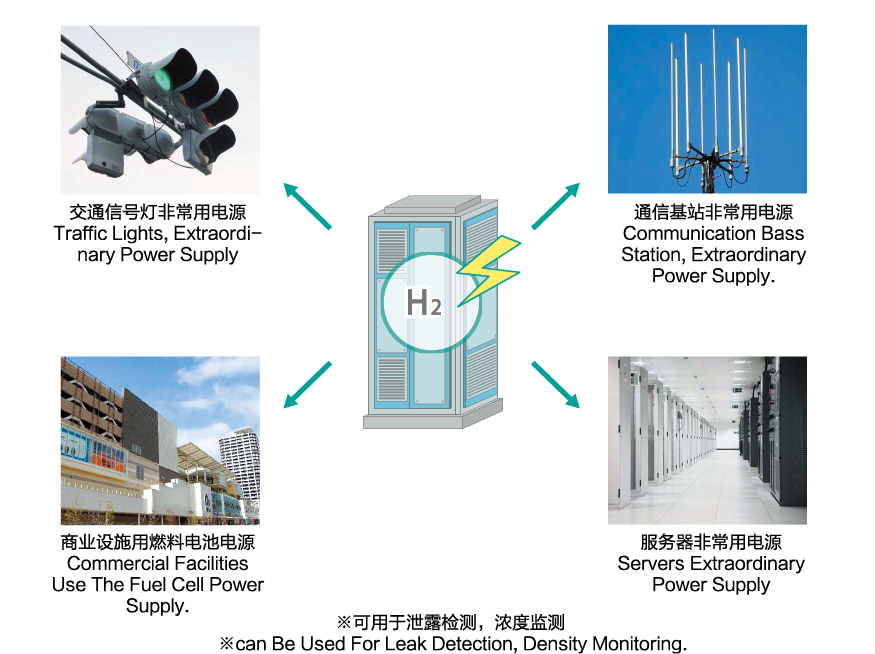

APPLICATIONS
Industrial gas leak detector
Target gas: Hydrogen
