產品描述：
本一氧化碳?xì)怏w傳感器可應用于室內需要測量一氧化碳?xì)怏w濃度的場合。
Product Description:

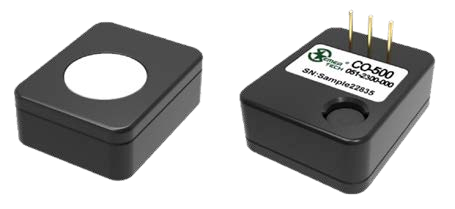

This carbon monoxide gas sensor is suitable for indoor applications requiring the measurement of carbon monoxide gas concentration.
| 參數 | 規格 |
| 量程 | 0 - 500 ppm |
| 最大荷載 | 1000 ppm |
| 靈敏度 (20°C) | 0.050 ± 0.015 μA/ppm |
| 響應時間 (T90) | ≤ 30 s |
| 基線 (20°C) | < ± 0.2 μA |
| 基線漂移 (-20°C - 50°C) | < 5 ppm |
| 分辨率 | 0.15 ppm |
| 線性度 | 線性 |
| 偏壓 | 0 mV |
| 工作溫度 | -20°C - 50°C |
| 工作壓力 | 1 ± 0.1 標準大氣壓 |
| 工作濕度 | 15% - 90%RH (無冷凝) |
| Parameter | Specification |
| Range | 0 - 500 ppm |
| Maximum Load | 1000 ppm |
| Sensitivity (20°C) | 0.050 ± 0.015 μA/ppm |
| Response Time (T90) | ≤ 30 s |
| Baseline (20°C) | < ± 0.2 μA |
| Baseline Drift (-20°C - 50°C) | < 5 ppm |
| Resolution | 0.15 ppm |
| Linearity | Linear |
| Bias Voltage | 0 mV |
| Operating Temperature | -20°C - 50°C |
| Operating Pressure | 1 ± 0.1 standard atmosphere |
| Operating Humidity | 15% - 90%RH (no condensation) |
